Product Introduction

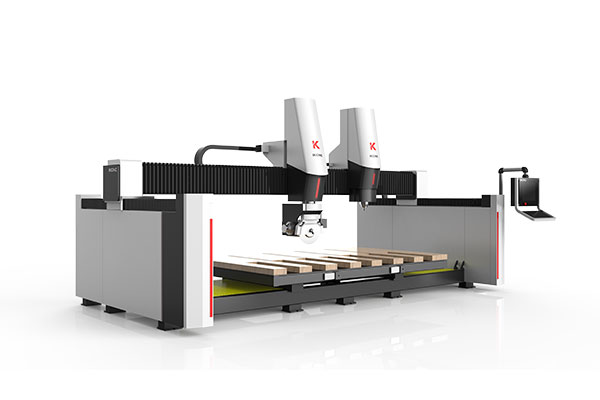

The machine has two independent heads, a four-axis cutting head and a edging head, the two heads cannot be used at the same time.Cutting head processing technic: transverse cutting, vertical cutting, 45'degree miter cutting, oval, circle, rim of horse's belly, support cutting with CAD drawings and U disk import. Edging head processing technic: using two motors, one is a high-speed trepanning motor, can install milling cutter, can trepanned, can cut R- angle graphics, another is a low-speed edging motor, can install BT40 tool handle, which can use abrasive wheel edging and polishing.

lntroduction To Functions

• Machine body with solid gantry girder, quenching heat treatment, guide rail, rack hole, all imported five­ sided milling machine, fine milling, drilling, the precision is very high.

• The paint of the whole machine, after many times of grinding, anti-rust treatment, many times of painting, effectively resist the corrosion of groundwater, Paint is more durable and less prone to peeling.

• The cable of whole machine use CE standard, low temperature resistance, high folding resistance and long service life.

• Electrical cabinet wiring is in accordance with the export of Europe and the United States international standard, assembly, anti-interference, all electrical parts are genuine brand.

• Independently developed CNC system, user-friendly, simple operation, with multiple functions, and support free upgrade later.

• 45 degrees miter, 85 degrees flip platform, using hydraulic cylinder control, stable and accurate.

• Included computer with touch screen support, both mouse and keyboard can control, with wireless controller.

Technical Data

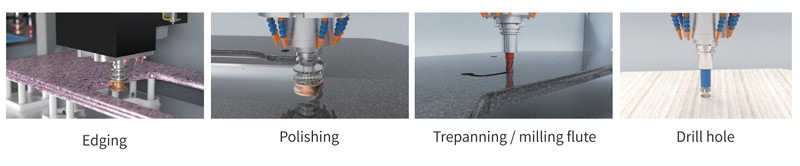

Edging head processing technic

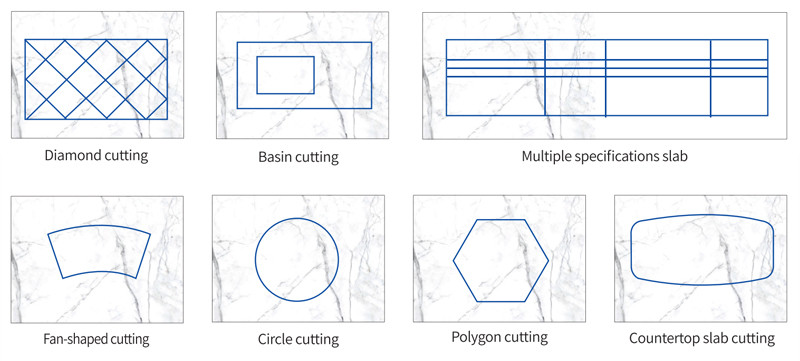

Cutting head processing technic
